T D Barnecutt Buffalo Mold Project Update earlier this T D asked to borrow a buffalo I had. Normally I do not loan out figures. I have had a few minor problems in this matter so I usually say no. In this case the buffalo was not an important piece. It was found in a junk box and I only kept as it cost me nothing. T D asked to borrow it so I let him have it. Here is his report on his project with with it.
T D Barnecutt Buffalo Mold Project Update the Project
I am way overdue on reporting back to you on your Buffalo figure and my attempt to make a mold of it! I apologize for taking so long. Here are some attached some photos.

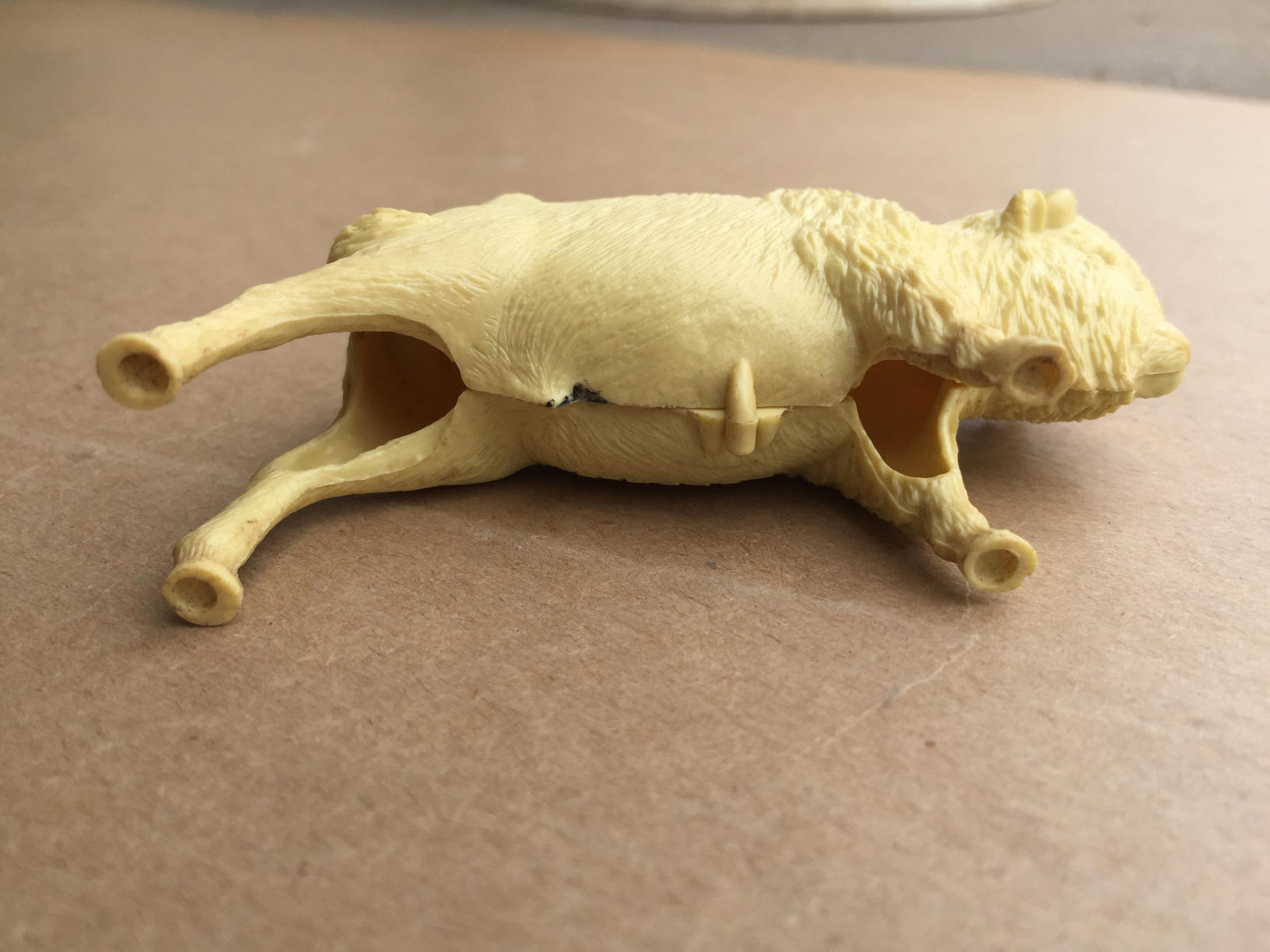

First thing I noticed when I received the buffalo from you was that the bump on the bottom was actually like a clasp, holding the two halves together. I found the buffalo came apart very easily & snaps back together easily as well. (see first photo). Although it looks similar to a ‘glue together’ type model kit, I don’t think that is what this is.
Second photo shows the two halves apart. I realized I would need to make molds of both sides.
T D Barnecutt Buffalo Mold Project Update A Closer View

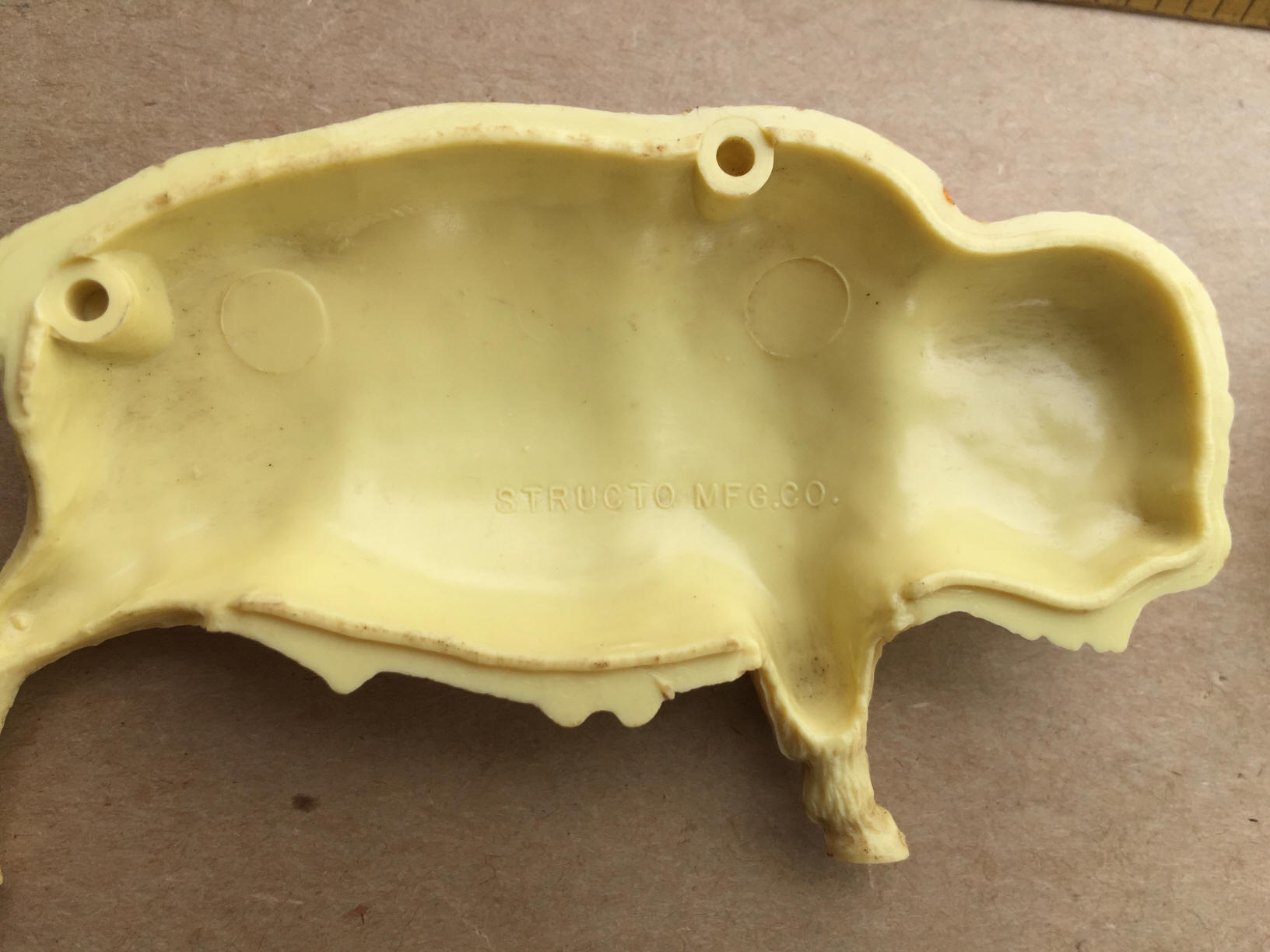

Third photo shows closer view of buffalo interior – made by Structo! I am guessing you had not taken the buffalo apart because you did not know the maker. Googling ‘Structo figures’ and they seem to only have made various Farm animals. I have not seen any other information about their buffalo figure on-line so I assume it is pretty rare. You may have more info about Structo toys than I can find on the web or you may know of Structo collectors who can give you additional info on the buffalo figure.

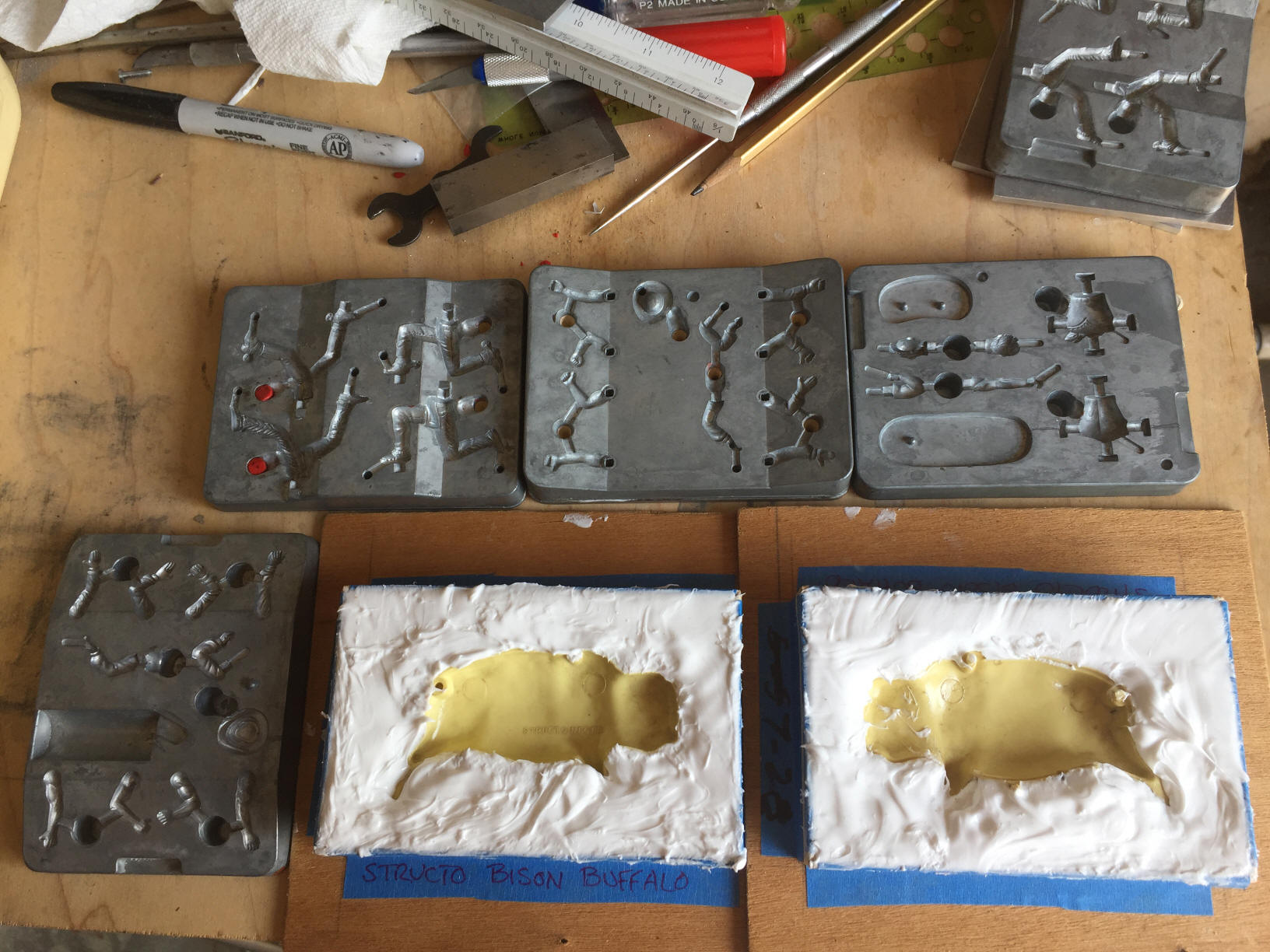

Fourth photo shows the buffalo halves embedded in curing silicone rubber, along with the Mattel Western world cowboy & indian molds which I acquired about the same time you sent me the buffalo. I have been working on both these projects and the Mattel molds have required a great deal of my free time. I have not successfully made any figures yet from the Western World molds.

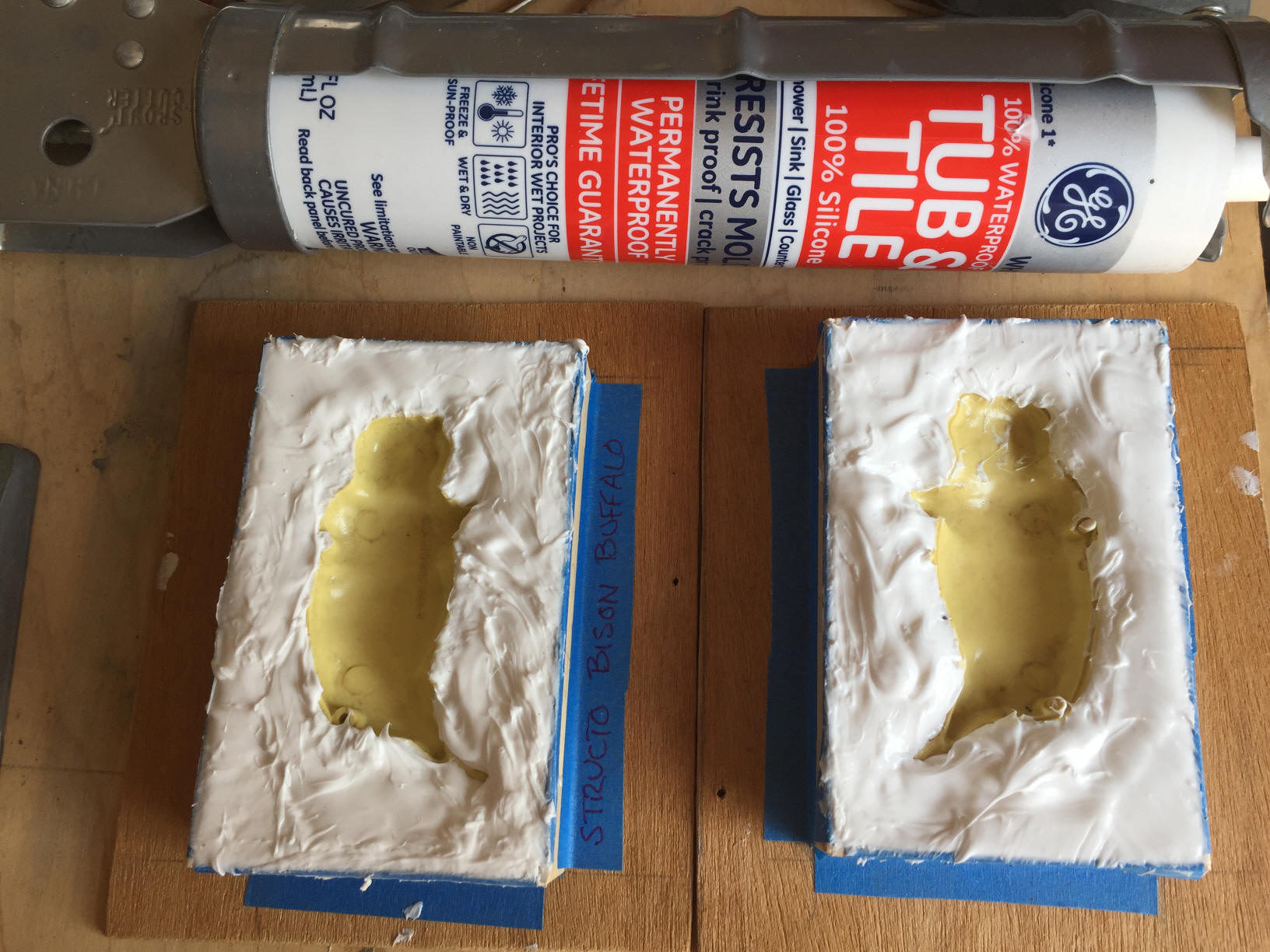

Fifth photo shows the silicone molds with a tube of the silicone caulking I am using (from Home Depot or Lowe’s).
So here is where the project is at the moment.
T. D. —
I’ve recently started making molds and wondered about using store bought silicone or Permatex gasket products. Is the process similar to using two part latex mold making products? By that, I mean, build a box, spray it and the original with mold release, then add the silicone and wait for it to set up? Sounds simpler and less expensive than buying the two part latex product. Do you use resin to cast your figures or something else?
— George Albany
George, I’ve never done resin casting but you certainly could make resin casts from the type of molds I make. I use the silicone rubber caulk because it’s easy to find locally and inexpensive. It does take longer to cure than the liquid 2-part silicone molding products and is probably not quite as durable. You have the correct process in mind about building the form / box, using a release agent, etc.
At one time I cast lead copies of various Marx and other figures but these days I would use tin or pewter. The metal figures paint up well and are great for display. Ask Stad for my e-mail and I can send you more details about the mold making.
There some mold maker supplier that sale better off store industrial far superior supply to make right silicone else mold.
Some even have softwere w mold making process in it.
3D mold industries will soon made then obsolote complete.
Stores such Michael s and Joahns soon will start selling 3D systems by mougth of DM I personal know and told me no long ago.
Several minor train hobby dealers are making sets of figures and accessories usind 3D systems and sale then at ebay , shows else.
Best
It figures, 3-D printers are doing everything. That sort of takes the fun and craftsmanship out of things. Although, I just finished casting some lead figures and with a leaky spout on the lead pot, molds that would cast just fine last week not working today and little blisters on my hands from lead splashes, a 3-D printer is looking oretty good at the moment. I bet they don’t splash hot lead.
— George Albany
I can understand the feeling of craftsmen with the advent of 3D. For some one who has been terrible in industrial arts 3D will allow my creative to come forth hopefully if I can ever afford the equipment.
